Getting Started

status completed

Step 1

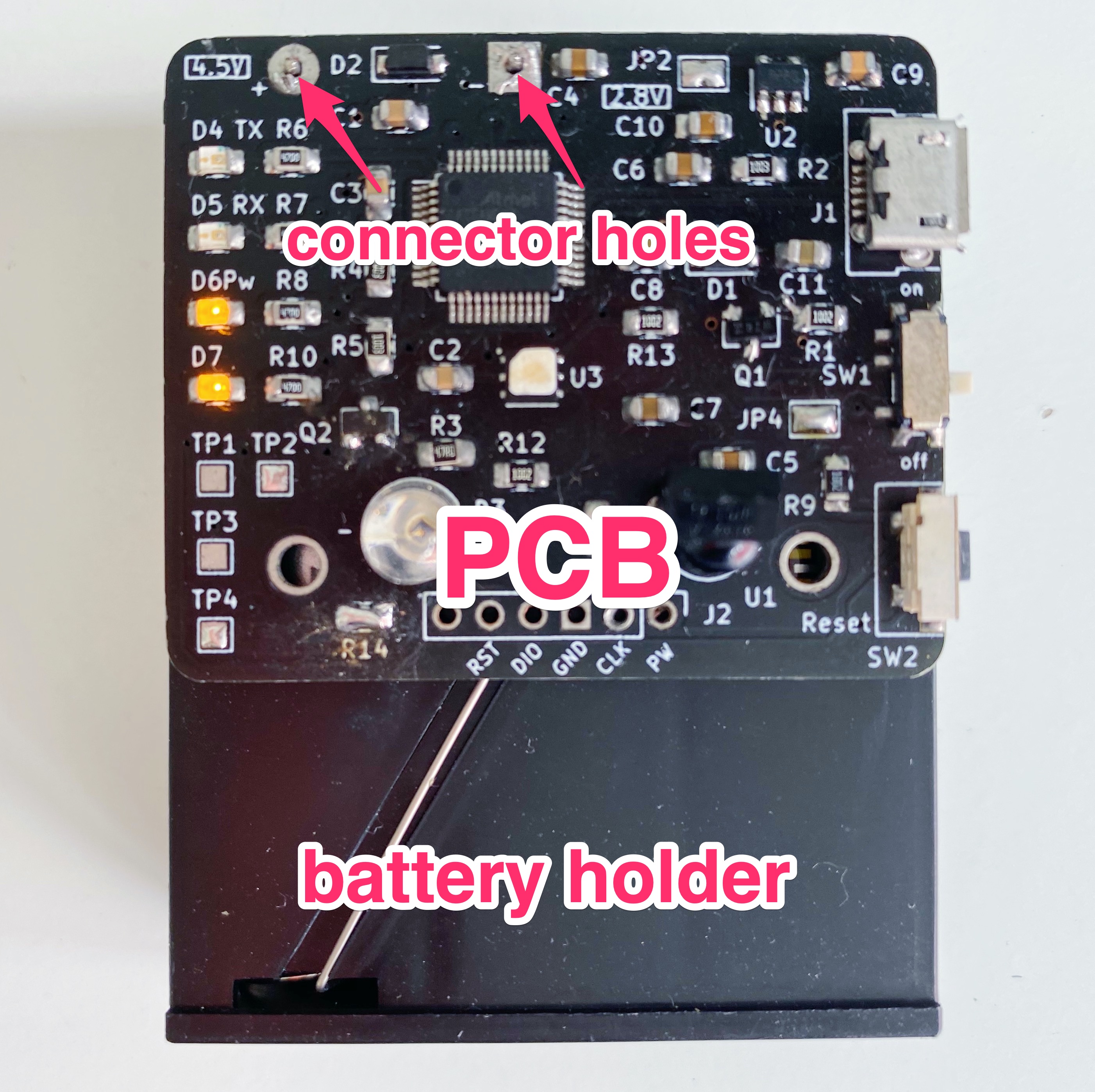

The PCB has 2 battery holder connector holes that can be used to attach the battery holder.

PCB battery connector holes

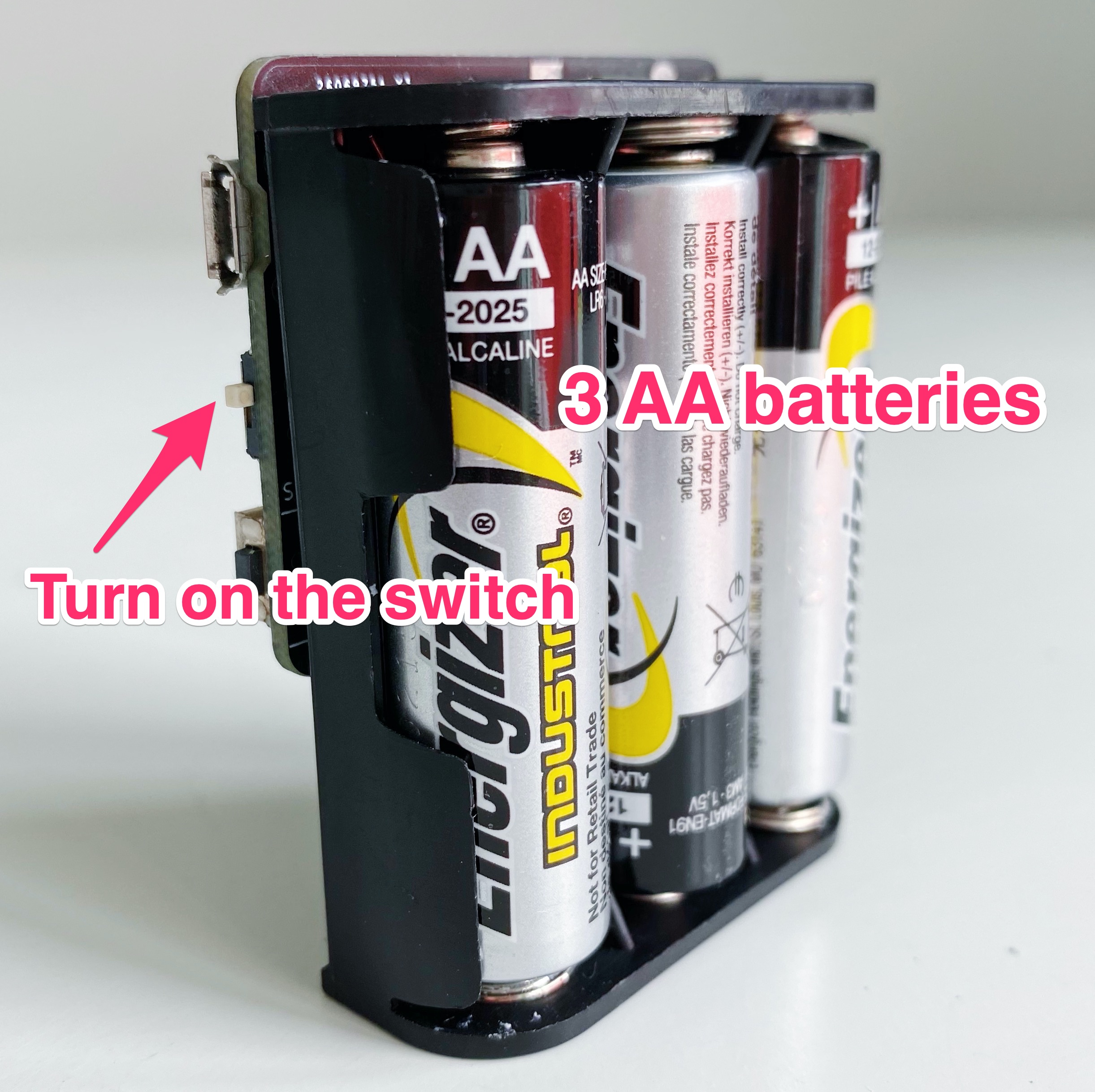

Put in 3 AA batteries and turn on the switch. The power LED should turn on.

PCB with battery holder

Step 2

Flash the firmware onto the Arduino Zero compatible board with a micro-USB cable.

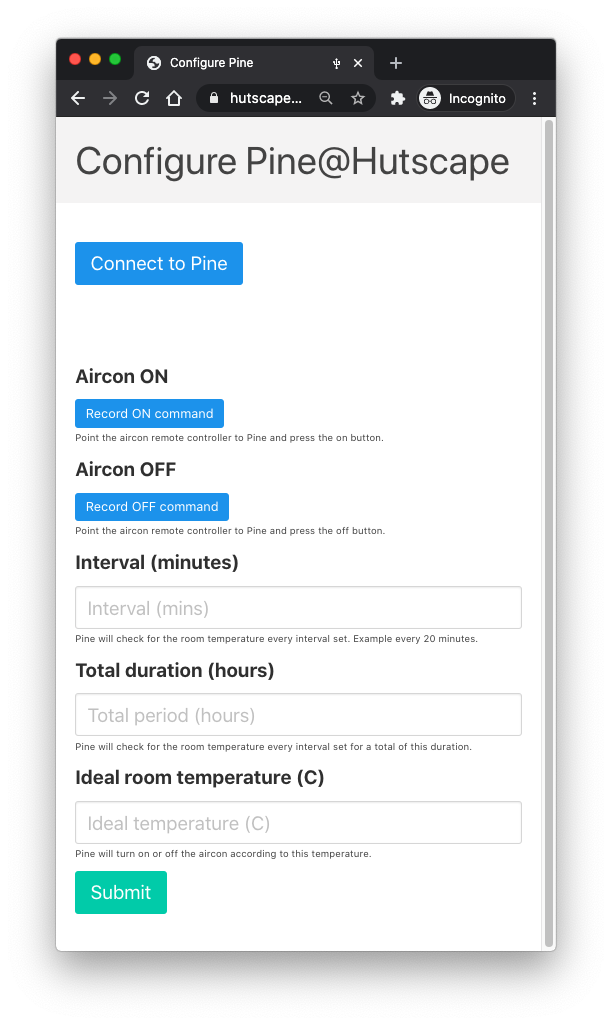

Web USB setup page

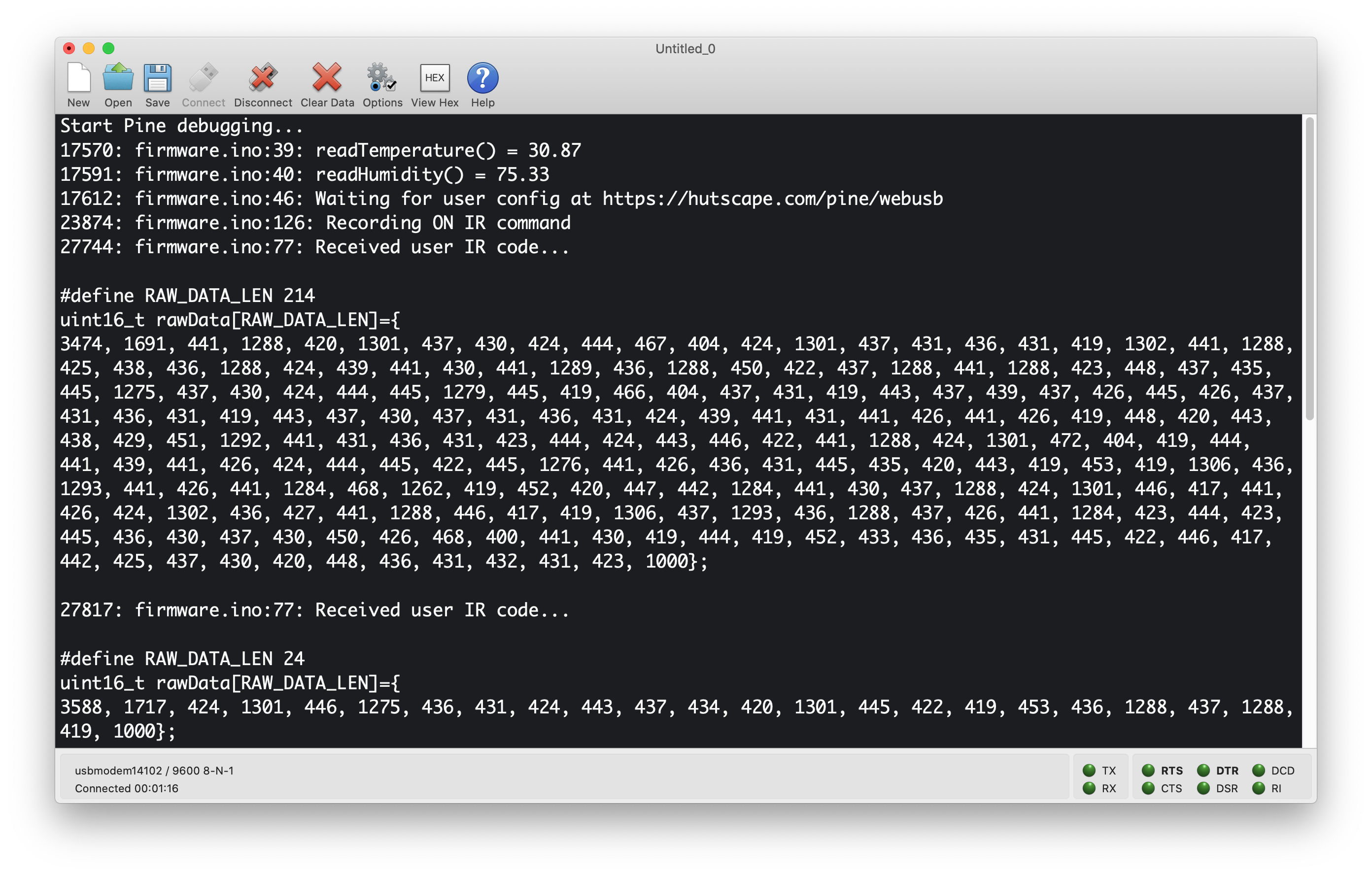

Connect to the serial monitor to see the debug messages.

Serial console

Step 3

Notice that the aircon should turn ON and OFF every 5 seconds as a test.
